Beyond the Mirror Finish: Mirror EDM as a Systematic Solution for High-Performance Mold Manufacturing

The value of a mirror EDM machine goes far beyond simply "producing a mirror finish." The mirror capability is only a basic threshold, merely a surface result reflected by an Ra value. Its core lies in providing a systematic solution tailored to the characteristics of different molds — integrating high precision, high consistency, high stability, high efficiency, and surface quality.

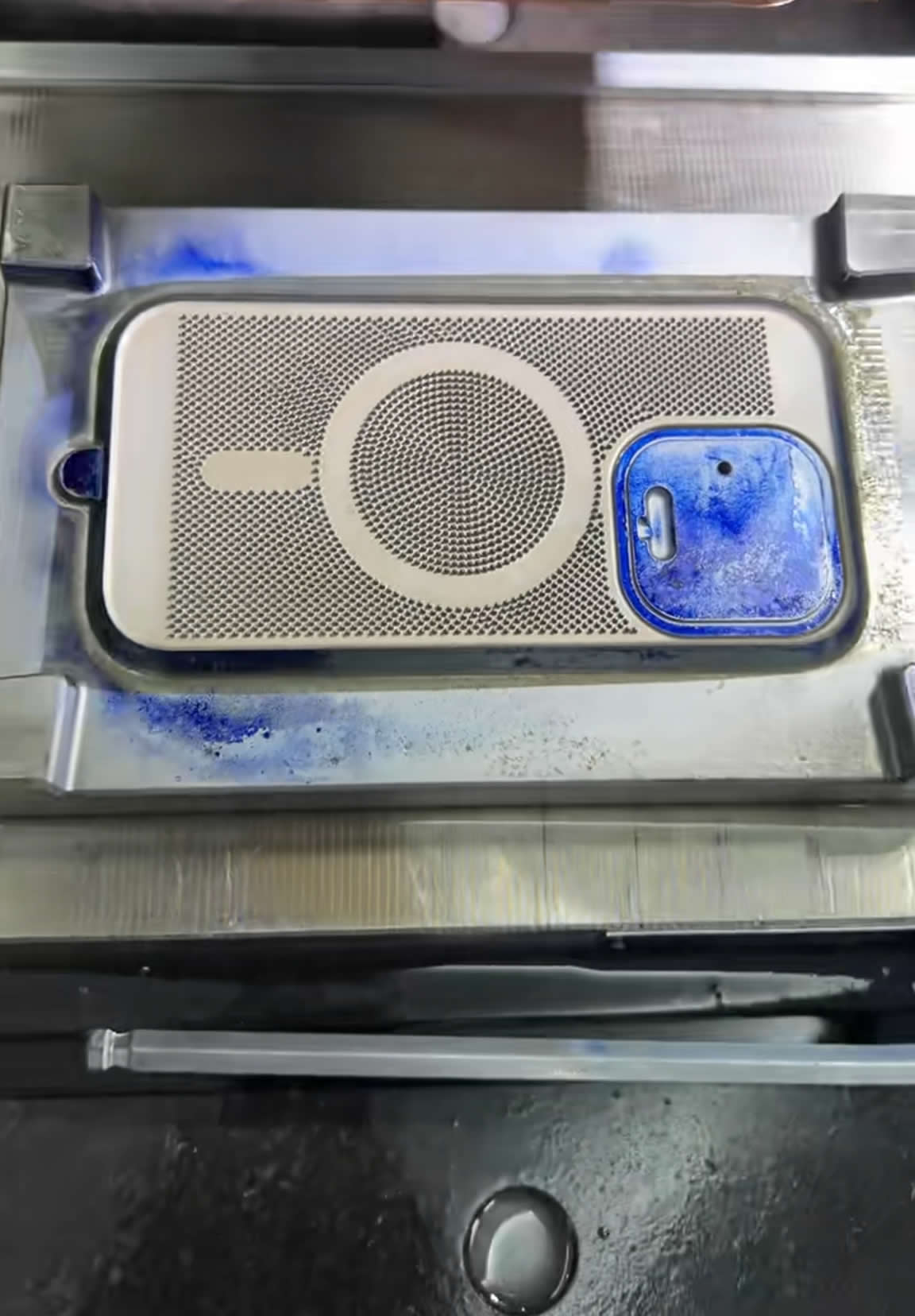

1. Mobile phone accessory molds: The competitive core of mobile phone accessory molds lies in "details" and "efficiency," making the mirror EDM machine a key tool for precision manufacturing. The machine’s low-loss circuitry, micro-finishing circuits, and micro-gap control first ensure that thin ribs are free from edge collapse and burn defects. It can directly achieve a mirror finish of Ra 0.1 μm, completing cavity machining in a single operation and eliminating the need for polishing. With positioning accuracy of ±3 μm, it can stably machine narrow slit structures 0.3–0.1 mm wide, ensuring contour accuracy consistency for highly demanding components such as 3D curved glass molds.

2. Connector molds: Connector mold cavities are tiny (<1 mm) and often involve multi-cavity configurations. The mirror EDM’s micro-finishing discharge circuit (with 1 μm drive resolution) provides fine control, holding hole position tolerances to ±0.005 mm and ensuring stable machining of micro cavities with low-energy, ablation-free results and uniform quality across all cavities. When equipped with an automatic tool (electrode) changer, it avoids manual errors and guarantees consistency in mass production.

3. New energy structural component molds: Molds for components such as battery and motor housings feature large dimensions and deep cavities, where deep cavities with aspect ratios often exceeding 10:1 pose a major challenge. By employing small-diameter electrodes, high-pressure flushing systems, and low-energy pulses, the mirror EDM machine effortlessly handles deep cavities with aspect ratios up to 1:15, achieving surface roughness as fine as Ra 0.1 μm.

4. Medical/transparent part molds: Such molds often require specific micro-textures for functionality and demand flawless surface quality. The mirror EDM’s high-precision CNC system and comprehensive process database ensure consistent machining conditions for every operation, delivering a uniform spark-eroded texture or mirror finish.

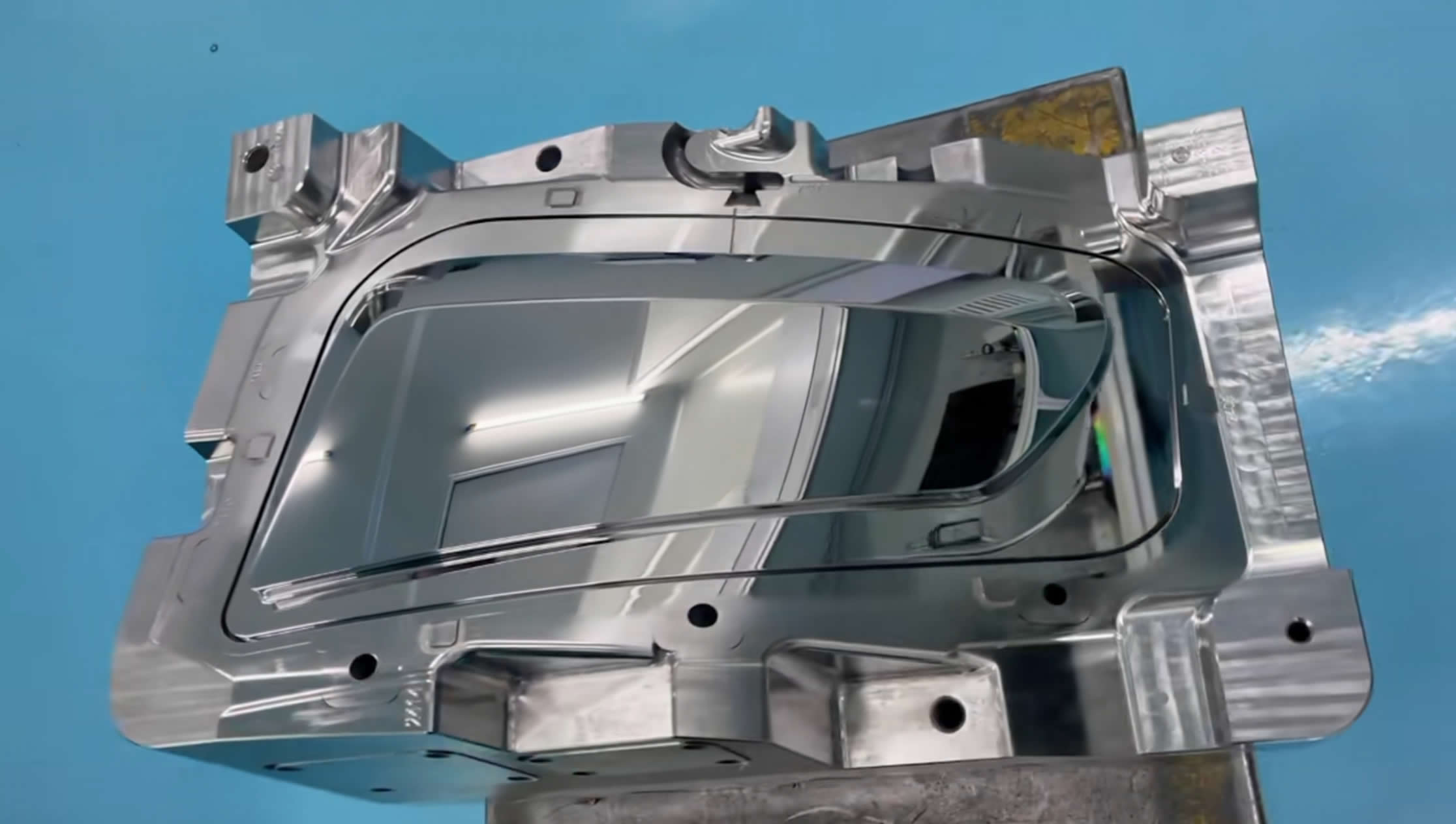

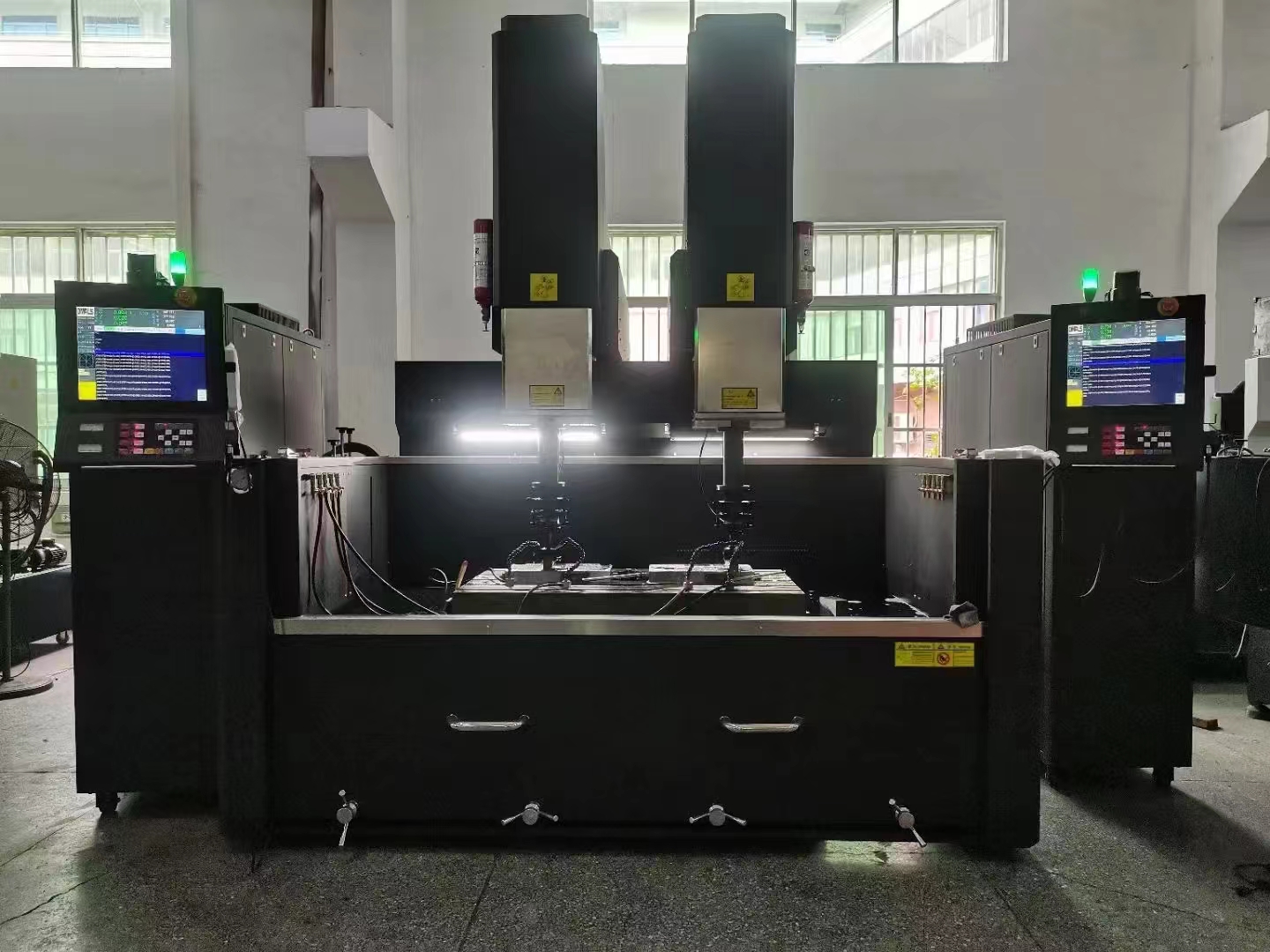

5. Large molds: For large molds such as automotive body panels, the machining equipment must possess extremely high rigidity and load-bearing capacity (weighing several tons). The twin-head mirror EDM machine is a typical solution, whose "dual-station collaborative" design enables simultaneous machining of the core and cavity, shortening the production cycle by over 50%. A dual-channel power supply further allows flexible production such as "finishing at one station, roughing at the other," ensuring stability during high-current, long-duration machining.
