High-speed Wire cutting EDM

A new generation of the CNC high-speed molybdenum wire cut machine is very popular because of its fast cutting speed, low loss of molybdenum wire and low cost.
Stepping accuracy<0.001mm
Best Surface Roughness 2.5μm
Precision machining 0.015mm
Max. Cutting Speed 300mm²/min

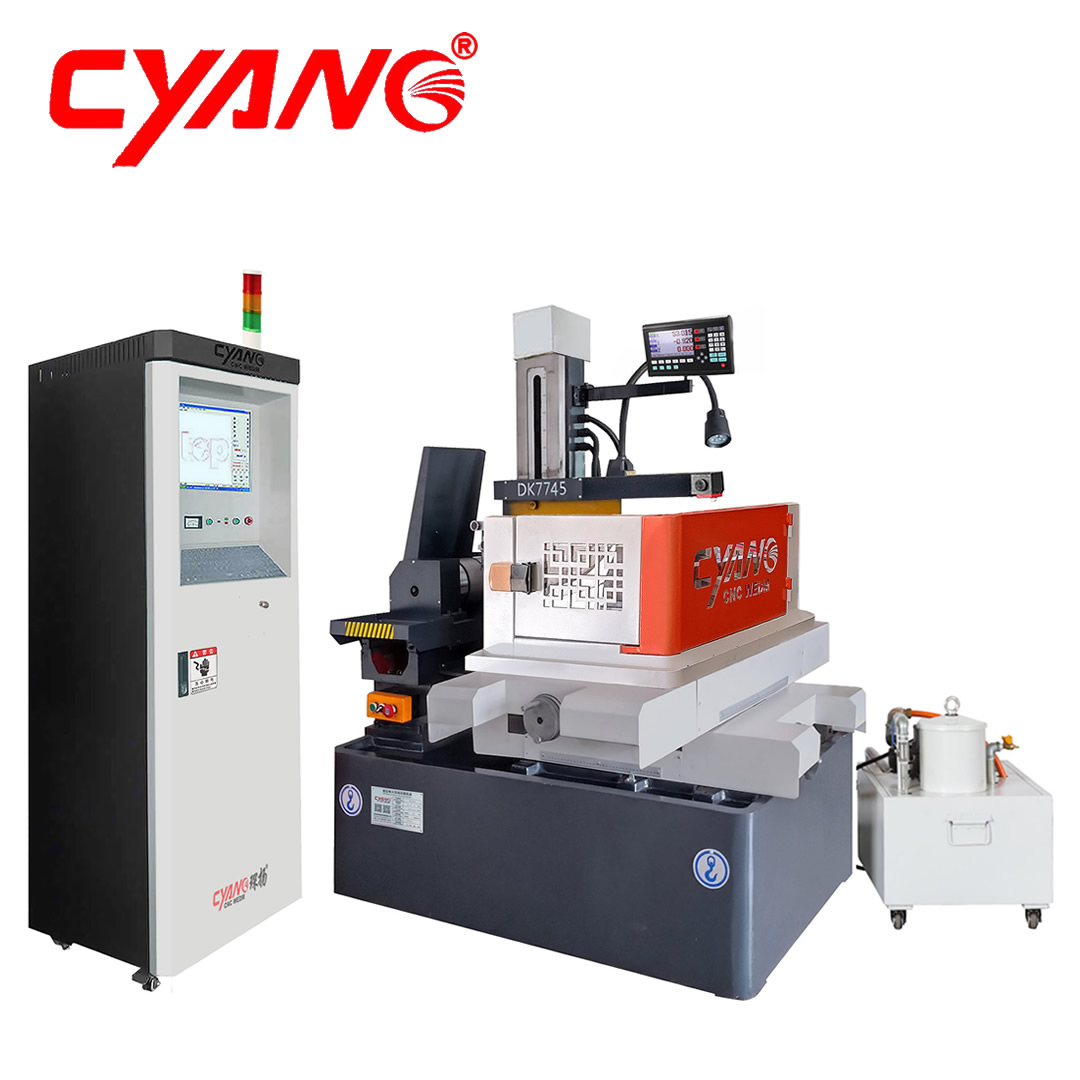

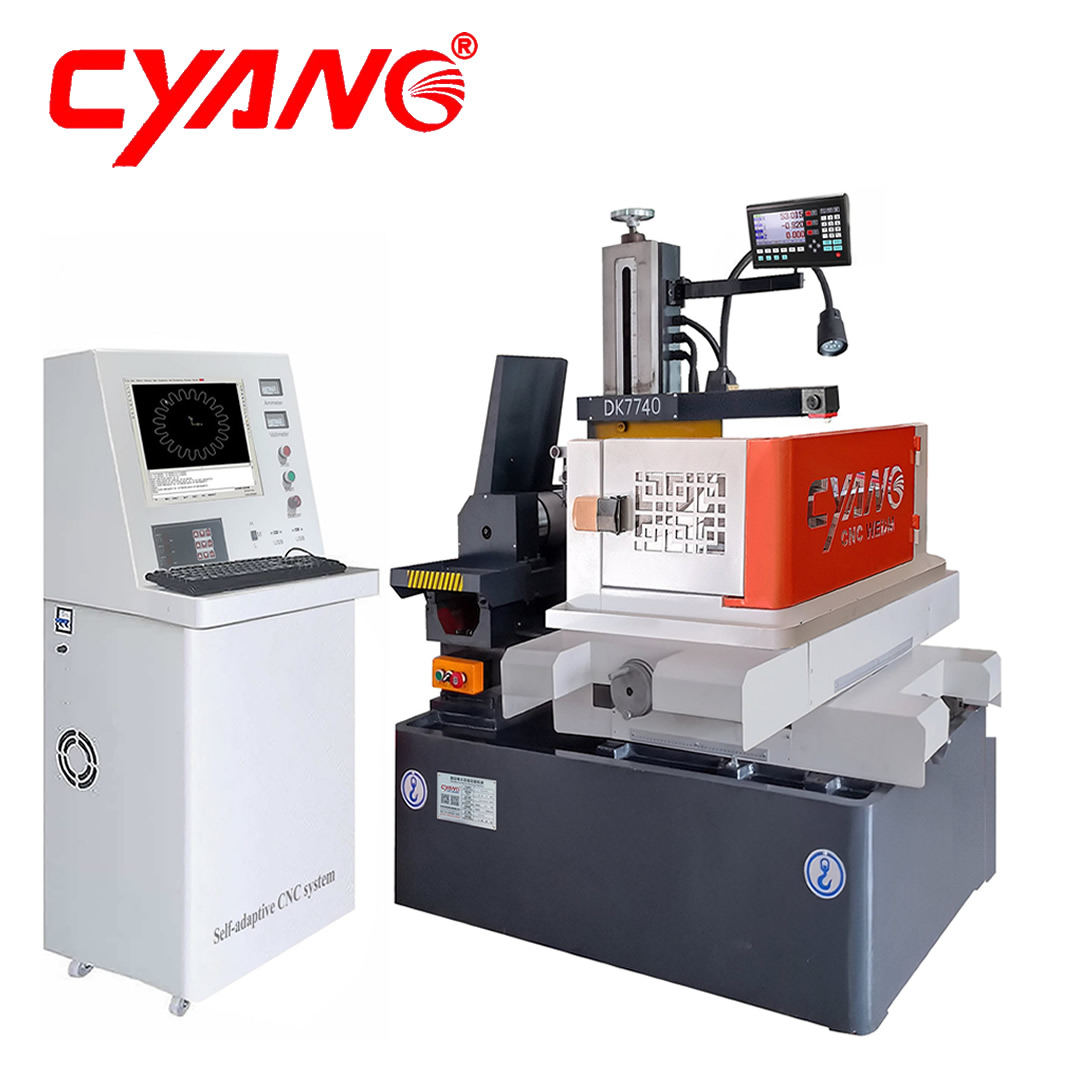

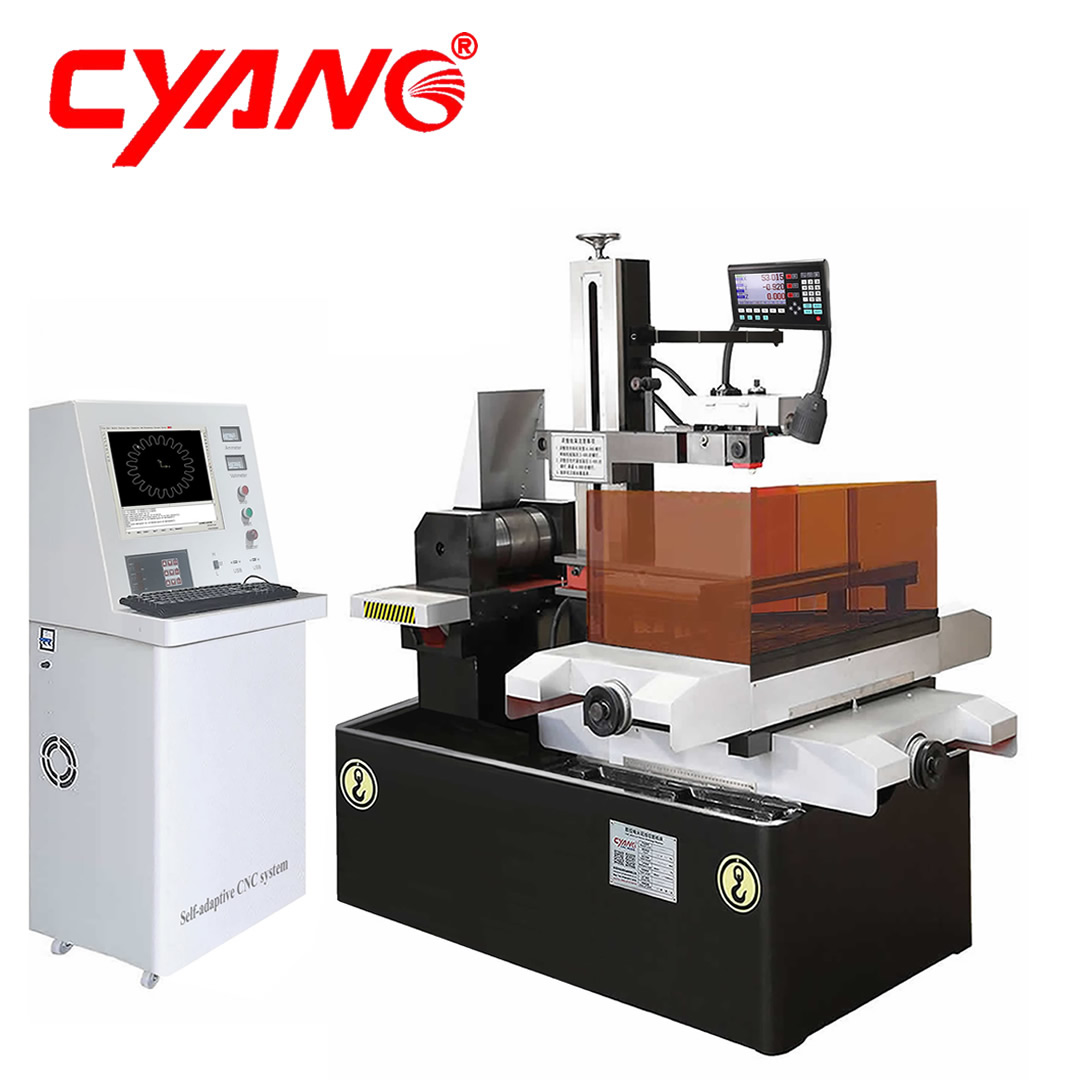

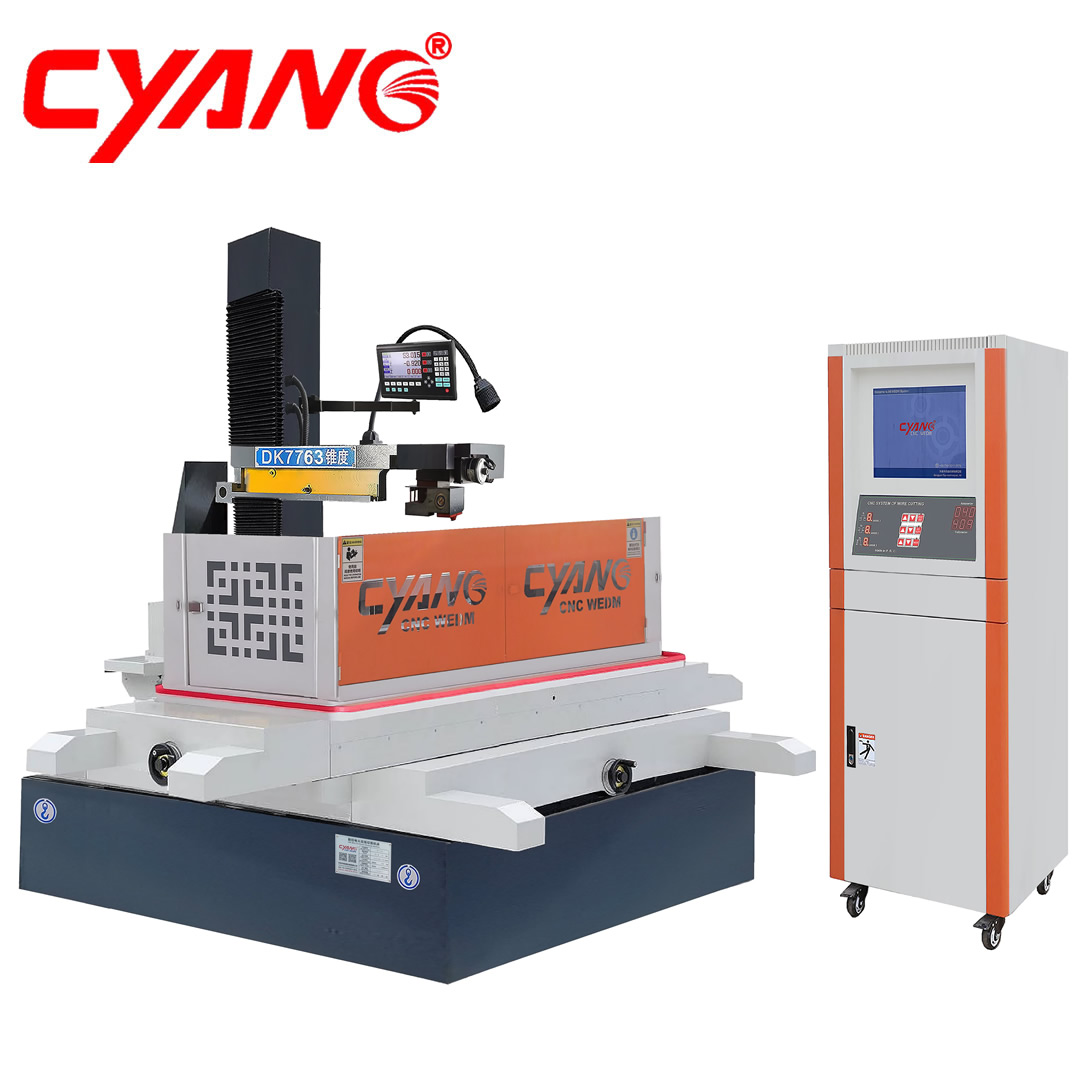

DK77 series wire cutting machine, using of stepper motor design, easy maintenance, high compatibility, easy upgrading, and so on, realize machining reliability on the basis of high efficiency.
Product Description

Item

Parameters

Machine model

DK7720

DK7725

DK7735

DK7745

DK7750

DK7763

DK7780

DK77100

Worktable stroke(X,Y,Z

200×250×300mm

250×320×400mm

350×450×400mm

450×550×400mm

500×630×500mm

630×800×500mm

800×1000×800mm

1000×1200×800mm

Worktable size

550×350mm

710×410mm

720×480mm

820×570mm

1000×700mm

1140×780mm

1250×950mm

1640×1200mm

The oil tank size

550×350×300mm

800×600×300mm

880×610×350mm

970×720×400mm

1200×820×400mm

1200×820×400mm

1500×1100×400mm

1780×1340×480mm

Max. cutting thickness

300mm

300/400mm

400~700mm

400~1000mm

500~1000mm

500~1000mm

500~1000mm

500~1000mm

Max. workpiece weight

200kg

300kg

300kg

500kg

650kg

800kg

1000kg

1500kg

Travel UV

70×70mm

X,Y ,U,V axis motor

Stepper motor

Z-axis control

Manually adjust, Electric adjustoption

Wire guide frame

Adjustable

Max. taper angle

6~12 degree / 80mm±15°,±30°,±45°option

Wire Speed

1.18-11.18m/s

Diameter of wire

Dia.0.10.22mm

Wire tension

10-30N

Positioning accuracy

0.02/500mm(GB/T 7926-2015)

Repeatable accuracy

±0.01mm(GB/T 7926-2015)

Max. Cutting Currrent

10A

Max cutting speed

≥300mm²/minit is different for different material and thickness

Best Surface Finish

Ra≤2.5μmit is different for different material and thickness

Precision machining

Octagon 0.015mm (GB/T 7926-2015)Taper 0.03mm (GB/T 7926-2015)

Working liquid box

38L/500×350×220mm

Filters water tank

80L/870×470×320mm

Control box

600×680×1750mm

Control box weight

120kg

Machine dimension

1100×800×1400mm

1500×1100×1550mm

1500×1100×1700mm

1700×1400×1700mm

1850×1670×1900mm

2160×1800×1900mm

2500×2000×2200mm

3000×2800×2500mm

Machine weight

700Kg

900Kg

1100Kg

1450Kg

1900Kg

2100Kg

2750Kg

5200Kg

CNC System

Operating system (OS)

Linux/Windows optional

CNC Control system

X8-WEDM & Autocut optional

Drawing Programming system

NCCAD,AutoCAD

Hardware Configurations

P4 or better, Standard keyboard and mouse, with 17"LED

Control method and axis

4 axis Control simultaneous program

Single pulse advancing accuracy

0.001mm

Data Port

USB, LAN

File formats supported for import

DXFDFTDAT

Programming Code

3B/ ISO/G code

Menu Language

Chinese/English

Dimension

Metric/Inch

Power Supply

Power

380V±10%50/60±1HZ

Other power

110~415V±10%50/60±1HZ

Consumption

1.5KVA

Working temperature

10-35℃

Relative humidity

40%~80%


This type is popular machines.Machines are with Stepper motors , Affordable prices.

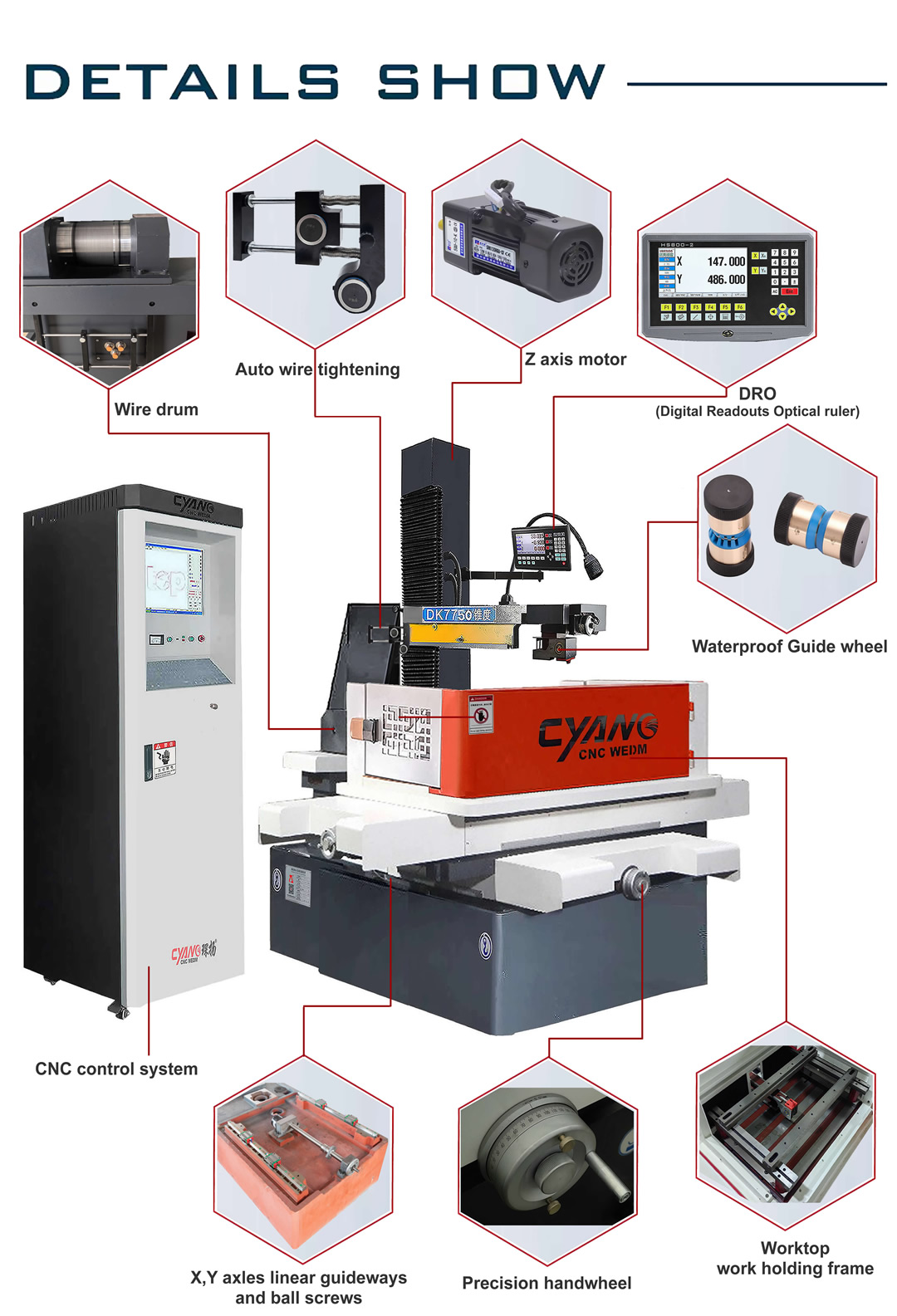

The Machine Body: Adopt the base of Meehanite cast iron (HT250), two aging treatment to eliminate stress and effectively inhibit the deformation of the machine tool.which makes the machine body of high load intensity and has ability to resist distortion.

Guideway and Ball Screw: Adopt Steel Linear guideway and precious ball screw .

Structure of wire frameThe symmetric structure for the upper and down frame to keep the tension of moly wire within the scope of normal tension. So no matter thin or thick work piece, the moly wire is not easy to break down.

The wire winding and traveling system: Wire winding drum is made of special steel, which is more stable, anti-corrosion. converter control the running direction, Which can be used longer time, improve the precision, roughness and reduce the wire broken.

The Taper Cutting Mechanism: It's driven by two step-motors to realize U and V movement, which can make the 4 axis (X,Y,U,V) simultaneously movement.

The working table: The table is equipped with a movable modular clamping device that can be moved to multiple positions to achieve installation and clamping according to the actual situation of the workpiece.

Working area:The frame water retaining structure with a three-sided opening design can against splashing and dripping of cutting fluid,allows for unobstructed operation and loading/unloading of workpieces.

Control system

Adopt the digital high frequency power, the power generator is controlled by  Controlled by the control panel, which can improve the precision and the stability of the pulse signal and reduce the probability of the high frequency power failure, advance the machining efficiency and the quality of working piece. Max. Current 10A ,max efficiency≥300m²/minDetermined by material and thickness, surface roughness≤2.5~3.2um. The modular design is used in the internal wiring, which can reduce the probability of the failure, and it's easy to maintain.

Autocut software basic function

Ø Autocut software is the unique software for WEDM running on the condition of windows XP.It can be smoothly connected with many design software such as AUTOCAD & etc.

Ø Built-in programming graphics and automatically prepared machining code programs.

Ø The multi-CPU function enables simultaneous processing and programming.

Ø Parallel compensation, clear angle setting, program image, corner optimization, scaling and other functions opened.

Ø Exchange X and Y axis randomly to adapt different machining state. Set wire controller's move speed freely.

Ø Record machining tracking information, to monitor machining during unmanned operation to ensure safety.

Ø Coordinate system: absolute coordinate, incremental coordinate (relative coordinate).

Ø Functions of coordinate transforming, zoom in and zoom out, rotating and tracking display in real time

Ø Functions of interpolation of straight line and circular arc.

Ø Function of taper processing

Ø Function of processing different top and bottom shape

Ø Functions of short circuit and wire-break handling

Ø Functions of memorizing when power was cut and auto-stop after processing

Ø Functions of auto-edge position and auto-centering

Ø Function of auto-adding transitional arc (Arbitrary angle)

Ø Function of processing backward

Ø Functions of menu technology and auto-programming

Ø Data transmission
