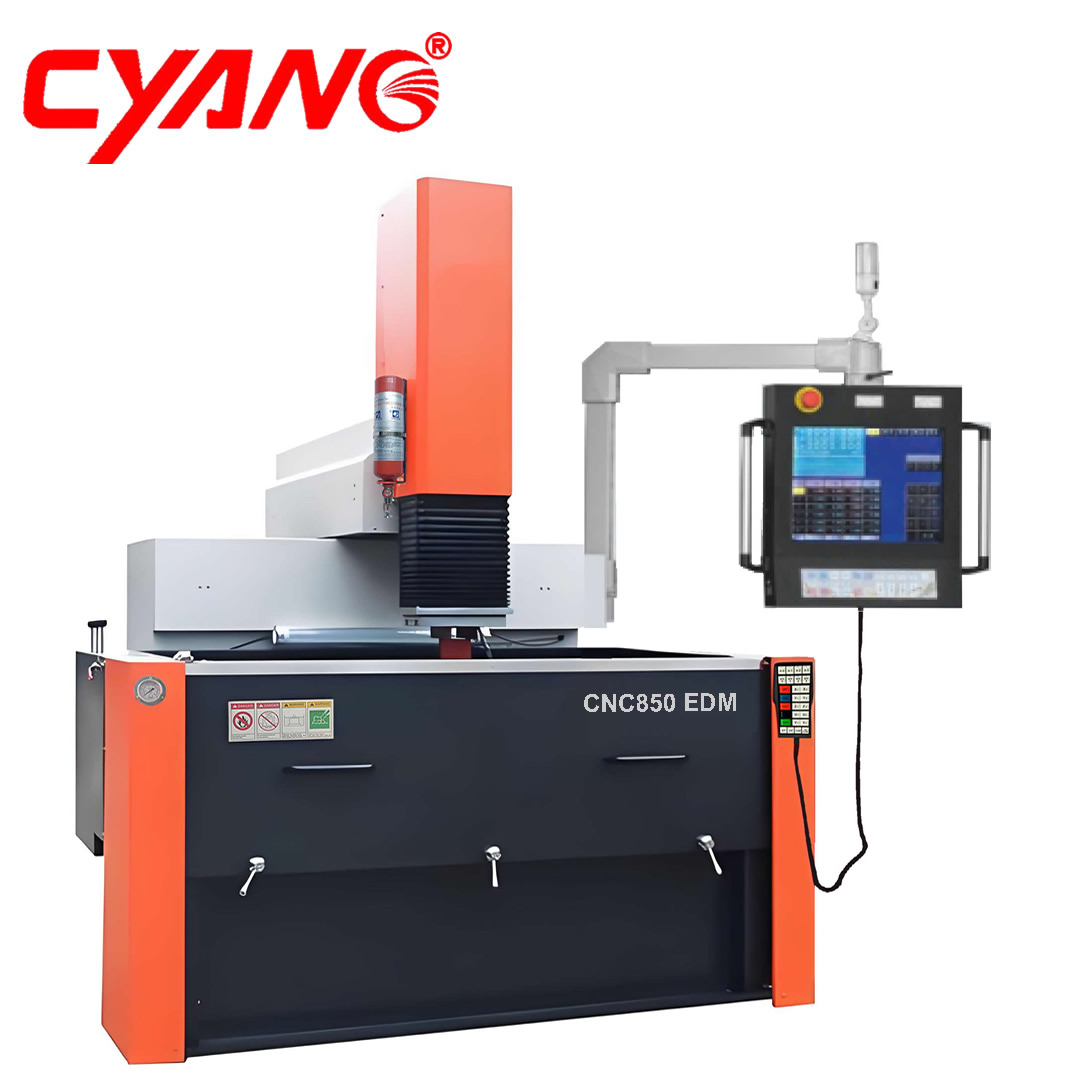

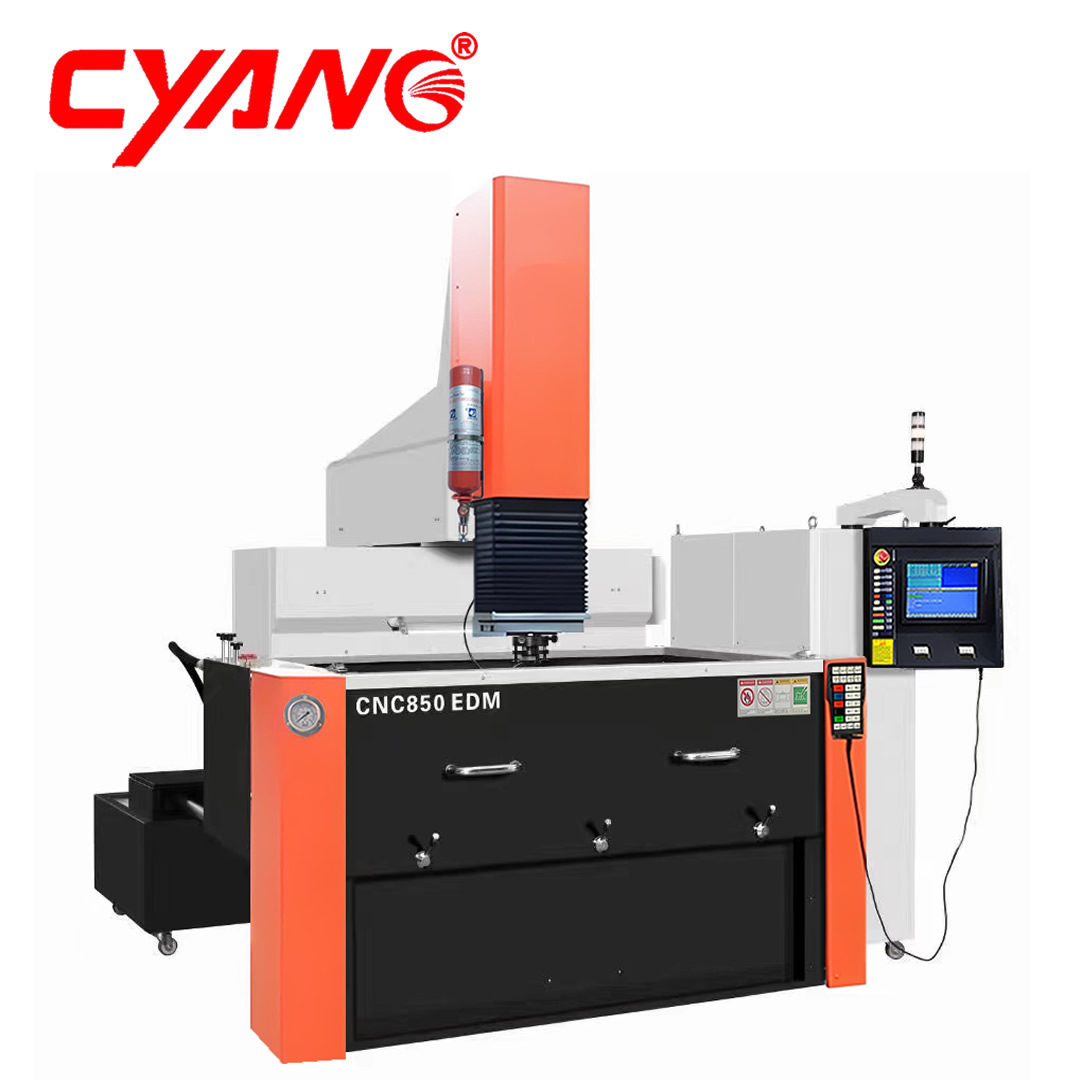

This CNC series EDM machine worktable is fixed, X and Y axis are moving on the column, there is no influence upon the X and Y axis when the weight of the workpiece changes,so it can load heavy parts.
Windows platform control system
X,Y,Z travel：800×500×400mm
Worktable size：1050×600mm
The oil tank size：1800×1100×600mm
Processing(Max.)：530mm³/min
Roughness(Min)：0.1μmRa
Positioning accuracy ≤8μm
Widely used in mold making workshop for the processing of complex mold cavity and curved surface of molds,precision machinery parts and all kinds of electrical conductive materials，especially complex curved surfaces which are inconvenient for polishing, which can save the manual polishing process. Is a machine shop, mold shop ideal processing equipment.
