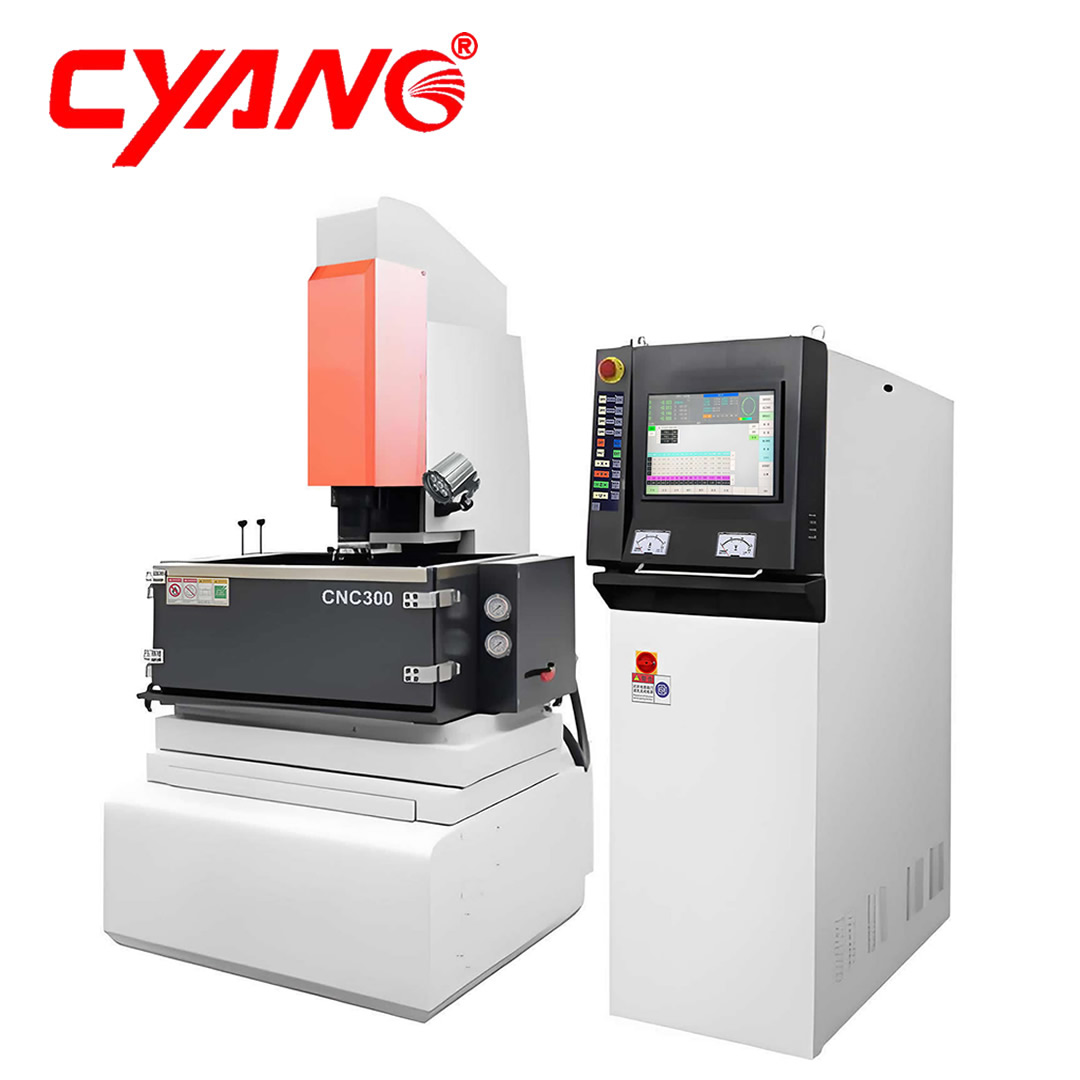

CNC300 Mirror Die Sinker EDM

CNC Mirror Die Sinker EDM provide PIKA sparking circuit where it sustains only less electrode wear and fast erosion speed which can achieve superior erosion function with smooth surface roughness.
Windows platform control system
X,Y,Z travel:300×210×270mm
Worktable size:600×400mm
The oil tank size:960×640×350mm
Processing(Max.):530mm³/min
Roughness(Min):0.1μmRa
Positioning accuracy ≤8μm
Mirror Die sinking EDM widely used in the fields of Mirror moulds, electronic instruments, precision parts, military, etc.suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing.
Product Description

Machine body

CNC300

The oil tank size (W*D*H)

960×640×350mm

Worktable size  (X*Y)

600×400mm

XYZ axis travel

300×210×270mm

XYZ-axis Drive

AC Servo

Highest level of working liquid

295mm

End of the spindle to the working table

565mm

Max. electrode wight

25kgs

Positioning accuracy

8μm

Repeat positioning accuracy

±4μm

Max. workpiece weight

300kgs

Machine dimension (W×D×H)

1300×1300×2240 mm

Packing dlimension (W*D*H)

1500×1500×2400 mm

Net weight(About)

2000kgs

Gross weight(About)

2300kgs

Rotation C-axisOptional configuration

C-axis travel

0-360°

C-axis load

20kg (straight line), 8kg (rotation)

C-axis Drive

AC Servo

Servo motor power

200W or 400WOptional

Connections

Air operation on back

Chuck Clamping power

10000N

Resolution

Linear axis resolution: 0.001mmRotation axis resolution: 0.001°

C-axis positioning accuracy

20°

C-axis repeat positioning accuracy

10°

This C-axis has the functions of automatic indexing and synchronous machining,and can be used for helical machining, positioning machining/servo, thread machining and profiling machining.

Pulse Power

 CNC power generator

Windows 7

Maximum processing current

50A

Processing voltage

90/100/120V

High Voltage selection

300V

Minimum discharge time

0.5 μ s

Minimum rest time

0.5 μ s

Maximum processing speed

530mm³/min

Maximum surface finish

Ra0.1 μm

Minimum electrode consumption ratio

0.1%

Minimum positioning resolution

0.1 μm

Control box dimension

550×1700×1850mm

Package size

900*750*2000mm

Net weight

220kgs

Gross weight

250kgs

Menu Language

Chinese/English

Dimension

Metric/Inch

Power Supply

Input voltage

3×380V ±10% ,50/60Hz

Power Capacity

9.0KVA

Other supply

200V / 415V

Working temperature

10-35℃

Relative humidity

40%~80%

Oil box unit

Oil box capacity

400Liters

Oil box net weight

220kgs

Oil box gross weight

250kgs

Machine configuration

X/Y/Z Axis Servo

Janpan Panasonic

Linear Guideway

Taiwan PMI

Ball Screw

Taiwan PMI

Bearing

Janpan NSK

Automatic Fire Extinguisher

Taiwan

Electrode chuck

Taiwan

Working oil pump

Denmark GRUNDFOS

Accessory

Standard Accessories

Options

Alcohol extinguisher

Voltage stabilizer

Working Lamp

Oil cooling system

Leveling pad

Permanent magnetic pedestal

Flushing unit

Tungsten carbide sparking circuit

Filter element

Electric discharge machining oil

1/2 Drill chuck

3R/EROWA clamp head

Tool box and kit

C-axis

Lubricating oil system

A-axis

Applications:

Precision tungsten steel moulds.


Injection moulds.


Mirror-finish injection moulds.


Electronic parts moulds.


Die casting moulds.


Progressive IC punching moulds.


 Application

CNC Die Sinking/Sinker EDM Machine, also known as CNC die-sinking EDM electrical discharge machine and CNC Spark Erosion Machine provided, It is a kind EDM spark erosion machine that utilizes high-frequency power between positive and negative anodes (electrode and workpiece), 3-axis or more axes controlled, to break through the gap between electrode and workpiece, to create high temperature to melt and remove metal to get needed profile cavity. The product made by CNC EDM die sinker/sinking sparkling machine is like a projective copy of the profile of the electrode on the workpiece. CNC EDM die sinking machine is widely used in mold making workshop for the processing of complex mold cavity and curved surface of molds,precision machinery parts , especially complex curved surfaces which are inconvenient for polishing, which can save the manual polishing process, improve the service performance of parts, and has very important practical significance for shortening the mold manufacturing cycle.

Equipment Features

Our company's Mirror Die CNC EDM series machine tool is made of high-strength cast iron bed and firm structure. the characteristics of high precision,high surface finish,high speed,stable operation and fewer failure. Optional Accessory C Rotary AxisThis C-axis has the functions of automatic indexing and synchronous machining,and can be used for helical machining, positioning machining, thread machining and profiling machining.They are widely used in the fields of high precision moulds (such as plastic mold, Bakelite mold, die casting mold, etc.), electronic instruments, precision mechanical process, automobile parts, military, etc... Is a machine shop, mold shop ideal processing equipment. CNC EDM processing machinery manufacturing has become an important part in the mold, electronic equipment, precision machining, automotive parts, military and other fields have a wide range of applications.

Windows Platform CNC EDM system function explanation

Ø LCD, touch screen input.

Ø Windows platform CNC control system, help for every page, quick and easy to learn and use.

Ø Multiple pages to be edit at the same time, automatic generate machining program with multiple cavities.

Ø Machining speed is about 30% faster than DOS platform discharging control system.

Ø Simultaneous three-axis control(optional 4-axis simultaneous control).

Ø Optimized high-frequency power control systemmost efficient control circuits.

Ø Super finish PIKA machining circuits-mirror surface machining function; fine current control circuits with better performance of large-area super finish machining, at the same time, the excellent performance of corner clearing. Min machining current 0.1ABest surface finish Ra≤0.1µm.

Ø Expert machining parameters database: with high explosive power circuit, especially good for processing hard ally material)Automatic and manual machining according to a different combination of a different material of electrode and workpiece: copper/steel, graphite 1/steel, graphite 2/steel, silver-tungsten/steel, copper-tungsten/steel, silver-tungsten/hard alloy, copper/zinc alloy, graphite/zinc alloy, copper/copper alloy.

Ø AUTO machining function:Input material of electrode and workpiece, machining area, shrinkage of electrode, required surface finish and etc Then control system automatically calculate machining parameters from rough machining to finish machining according to expert database.

Ø Automatic positioning function:End face positioning, cylinder center positioning, corner positioning, inner hole positioning, random three points positioning, discharging position self-decided positioning and etc.

Ø Online measuring function:Utilize automatic positioning function to do the online measuring and amending to the machined workpiece.

Ø Automatic arcing removing circuit:Real-time monitoring on the discharging status, if any tiny short circuit or arcing happens, the system would remove arcing and give the alarm.

Ø Safety control function:Overload protection, code grammar detecting, oil level control, oil temperature control, automatic fire extinguisher.

Ø Power-off recovery function:The system can remember the present position of coordinate, when suddenly power-off happens, the present position can be kept.

Mechanical Features

Ø Adopting precision CAD design and high precision frame structure.

Ø Machine Body is resin sand, non reniun force advanced casting, Adopt HT300 ageing treatment casting, keep precision long time. Structure is reasonable, no deformation, rigid, durable, precision remains unchanged.

Ø The working table is made of high-class marble(00 grade), barely any deformation due to a change of temperature.

Ø The column adopts a one-piece structure,which makes the B-axis more rigid,and the heavy-duty electrode processing can be done easily.

Ø The X,Y,and Z axes all adopt imported linear slide rails,Japanese Panasonic absolute servo

motors,Taiwan PMI C-level screw rods and P-level guide rails, which effectively guarantee the high precision of the machine tool and the long-term durability of the machine tool.

Ø Bearing for holding up screws are made by NSK in Japan, NSK bearing have much better performance than others in many aspects, such as loading, rigidity, motility.

Ø Coupling, which is used for connecting screw and motor are American plum blossom-sharp.

Ø Immersion processing is used to effectively guarantee the processing accuracy and surface finish.

Ø The whole machine adopts centralized lubrication to provide uniform lubrication for each track surface.

Ø Complete peripheral facilities such as automatic fire extinguishing device and processing fluid surface sensing device provide a safe environment.

Ø Using centrifugal high pressure oil pump of WALRUS and 10u filter system.

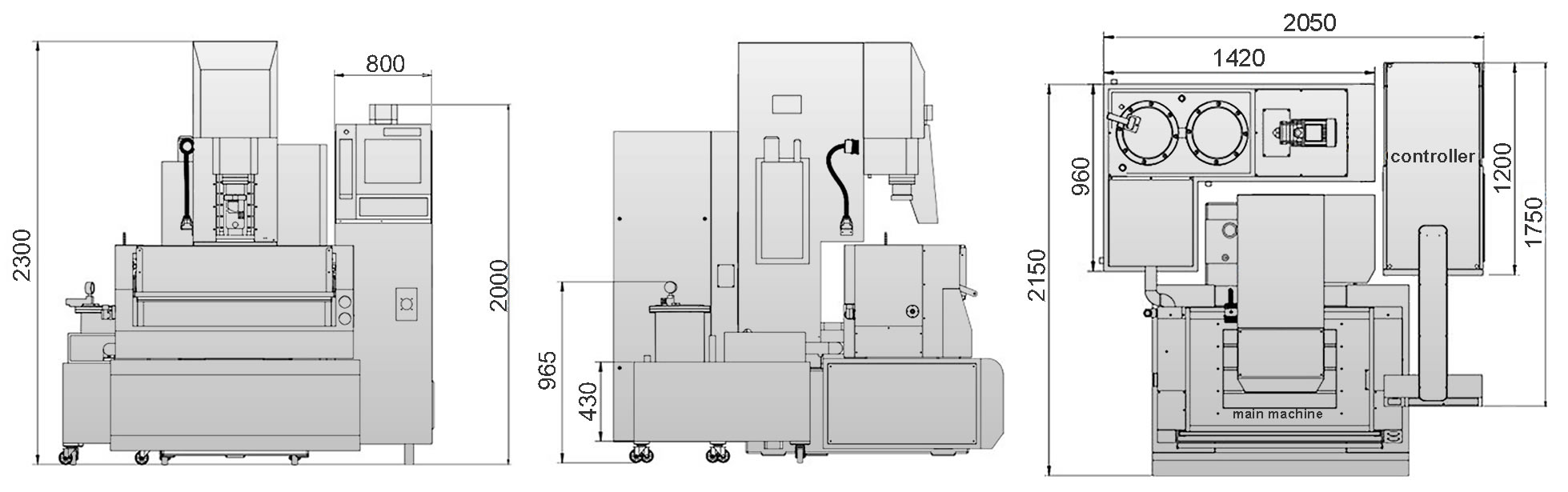

Overall dimensions
