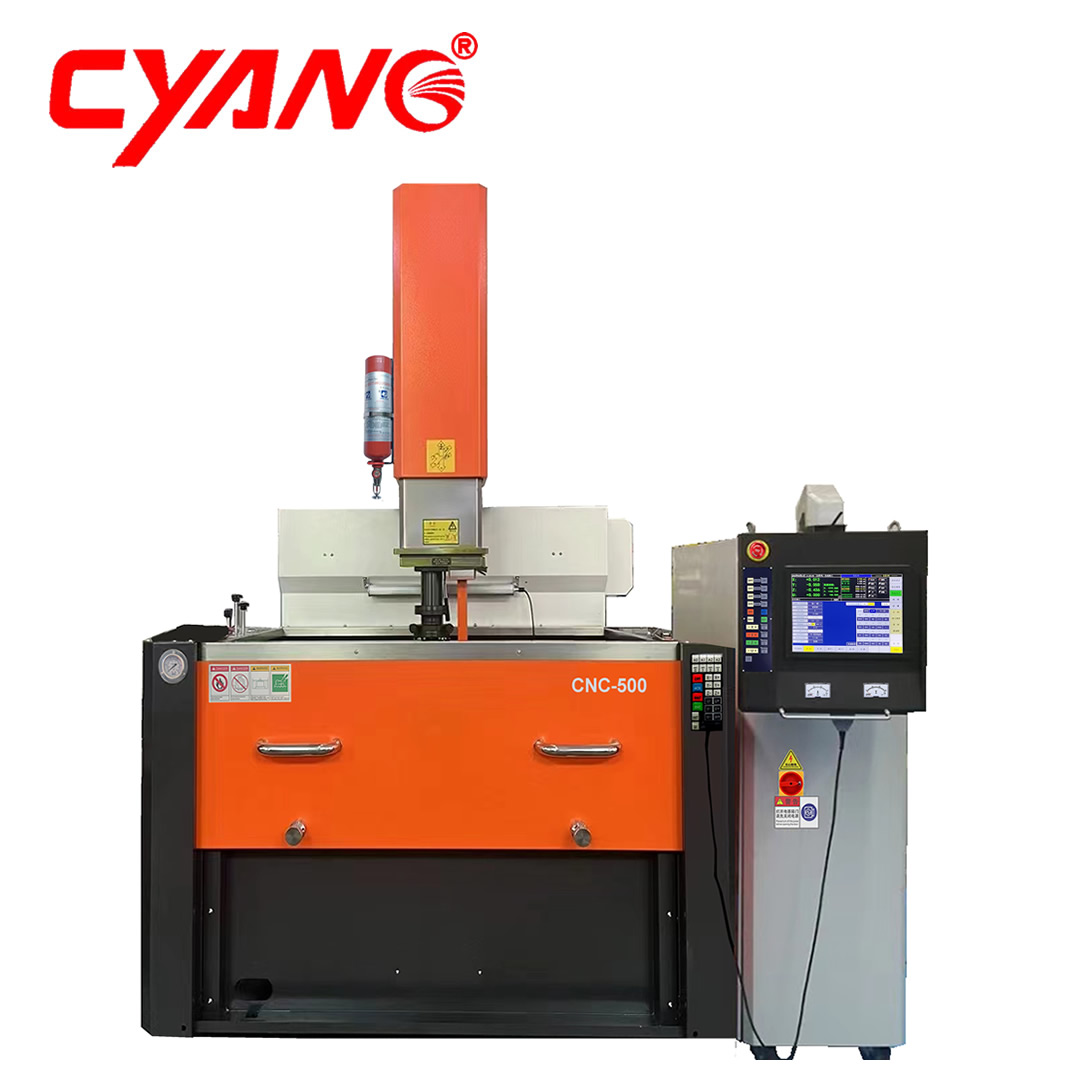

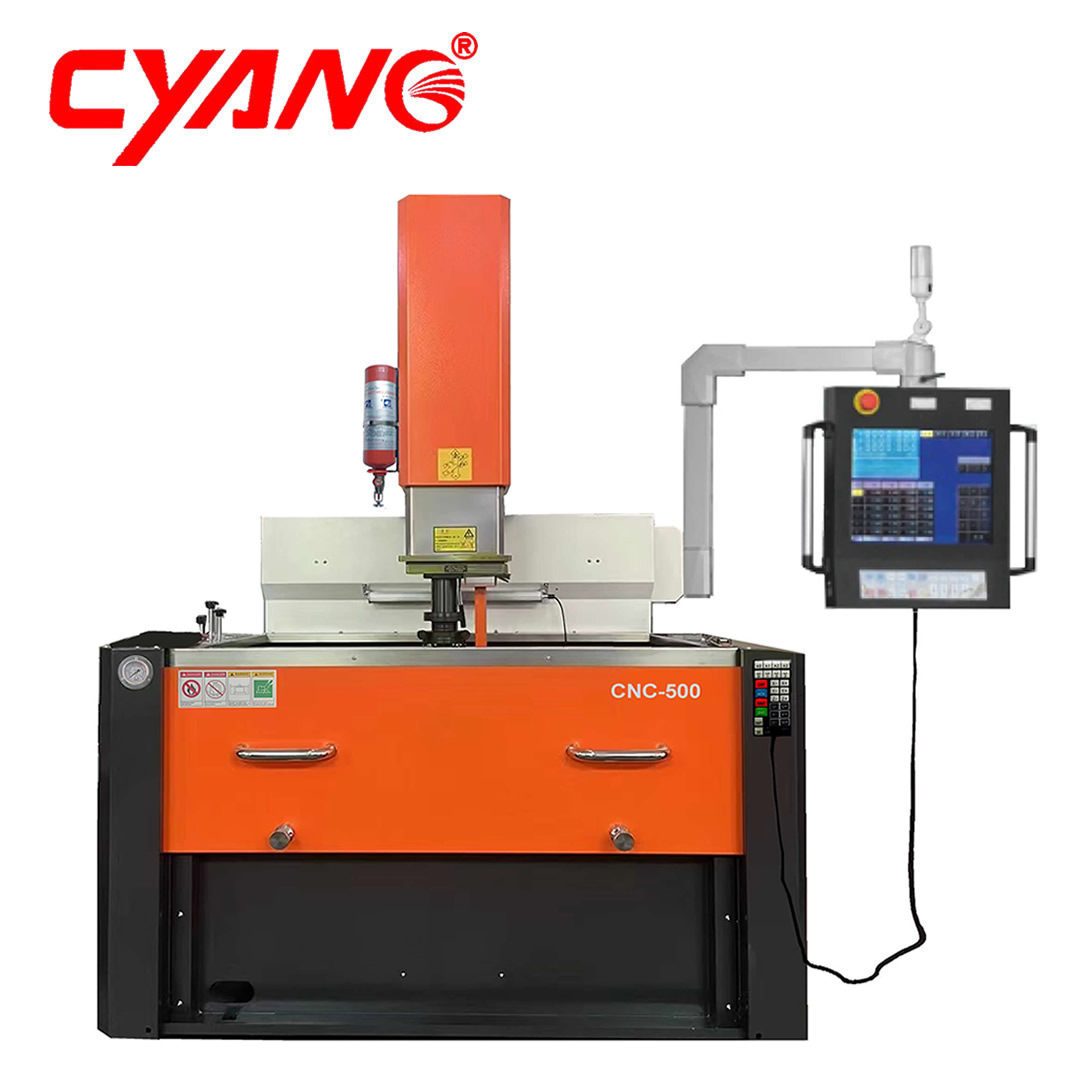

Machine body | CNC500M |
The oil tank size | 1300×850×450mm |
Worktable size | 800×500mm |
XYZ axis travel | 500×400×300mm |
Highest level of working liquid | 300mm |
End of the spindle to the working table | 600mm |
Max. electrode wight | 80kgs |
Positioning accuracy | 8um |
Repeat positioning accuracy | 4um |
Max. workpiece weight | 1800kgs |
Machine dimension (W×D×H) | 2450×2500×2350mm |
Packing dlimension (W*D*H) | 2700×2700×2550mm |
Net weight(About) | 2800kgs |
Gross weight(About) | 3200kgs |
CNC power generator | |
CNC Control system | Windows 7 based |
DisplayRemote control | 15-inch touch screen |
Interpolation methods | Straight line, arc, helix |
Accuracy compensation options | Step pitch compensation of each axis,gap compensation |
Interpolation methods | Different grades MO-3 |
Max working current | 50A |
Processing voltage | 90/100/120V |
High Voltage selection | 300V |
Minimum discharge time | 0.5 μ s |
Minimum rest time | 0.5 μ s |
Maximum processing speed | 530mm3/min |
Maximum surface finish | Ra＜0.1 μ m |
Minimum electrode consumption ratio | 0.1% |
Minimum positioning resolution | 0.1 μm |
Control box dimension | 550×1200×2000mm |
Gross weight | 400kgs |
Menu Language | Chinese/English |
Dimension | Metric/Inch |
Power Supply | |
Input voltage | 3 Phase 380V ±10% ,50/60Hz |
Power Capacity | 9KVA（50A） |
Other supply | 200V / 415V |
Working temperature | 10-35℃ |
Relative humidity | 40%~80% |
Oil box unit | |
Oil box capacity | 800Liters |
Oil box dimension | 1600×1100×750mm |
Oil box gross weight | 250kgs |
Machine configuration | |
X/Y/Z Axis Servo | JANPAN Panasonic |
Linear Guideway | German Rexroth |
Ball Screw | TAIWAN PMI |
Bearing | JAPAN NSK |
Automatic Fire Extinguisher | Taiwan |
Electrode chuck | Taiwan |
Working oil pump | Denmark GRUNDFOS |
Accessory | |
Standard Accessories | Options |
Alcohol extinguisher | Voltage stabilizer |
Working Lamp | Oil cooling system |
Leveling pad | Permanent magnetic pedestal |
Flushing unit | Tungsten carbide sparking circuit |
Filter element | Electric discharge machining oil |
1/2 Drill chuck | 3R/EROWA clamp head |
Tool box and kit | C-axis |
Lubricating oil system | A-axis |
Applications | |
Precision tungsten steel moulds. | |
Injection moulds. | |
Mirror-finish injection moulds. | |
Electronic parts moulds. | |
Die casting moulds. | |
Progressive IC punching moulds. | |
Application
EDM sinker machine is used for cavity forming. It utilizes conductive material (copper, graphite, steel) as electrode to process workpiece (conductive material) by spark erosion. Mirror CNC EDM die sinking machine is widely used in mold making workshop for the processing of complex mold cavity and curved surface of molds,precision machinery parts and all kinds of electrical conductive materials. The precision machining of complex mold cavities, especially complex curved surfaces which are inconvenient for polishing, which can save the manual polishing process, improve the service performance of parts, and has very important practical significance for shortening the mold manufacturing cycle.
Equipment Features
CNC 600 spark erosion machine is made of high-strength cast iron bed and firm structure. The working table is fixed, X and Y axis are moving on the column, there is no influence upon X and Y axis when the weight of the workpiece changes, so it can load heavy parts.The characteristics of high precision,high surface finish,high speed,stable operation and fewer failure,CNC 600 EDM is competitive to machines produced by top worldwide manufacturers.
Function introduction to CNC EDM
Ø Windows Platform CNC EDM Machine Highlights
Ø Latest Windows platform control system
Ø Up-and-down working tank door, same space, easy to handle.
Ø Intelligent automatic EDM machining.
Ø New expert database equipped spark erosion machine for sale.
Ø Excellent performance of both cooper and graphite electrode machining.
Ø Multiple pages editing at the same time, no need to stop machining.
Ø Min machining current 0.1A.
Ø Best surface finish Ra≤0.1µm
Ø Positioning accuracy ≤8μm
Ø Imported SP grade linear guideway
Ø C2 grade ball screw
Ø High jump function, after serval times of regular jump discharging, Z axis move higher, and then goes with regular jump height again, it is help for deep groove and massive area machining.
Ø Machining speed is about 30% faster than DOS platform discharging control system.
Ø Auxiliary learning function
Machine Function Configuration of Controller
Ø LCD, touch screen input
Ø Windows intelligent expert platform CNC sinker EDM control system, help for every page, quick and easy to learn and use
Ø Multiple pages to be edit at the same time, automatic generate machining program with multiple cavities.
Ø Can select any axis to start when do homing after power off.
Ø Coordinate position automatic memory
Ø React speed and machining efficiency is faster than old system.
Ø Standard with simultaneous three axis control, Max six axis simultaneous control
Ø Super finish PIKA machining circuits-mirror surface machining function, Min machining current 0.1A
Ø Expert machining parameters database: with high explosive power circuit, especially good for processing hard ally material) Automatic and manual machining according to different combination of different material of electrode and workpiece: copper/steel, graphite 1/steel, graphite 2/steel, silver-tungsten/steel, copper-tungsten/steel, silver-tungsten/hard alloy, copper/zinc alloy, graphite/zinc alloy, copper/copper alloy.
Ø AUTO machining function:Input material of electrode and workpiece, machining area, shrinkage of electrode, required surface finish and etc Then control system automatically calculate machining parameters from rough machining to finish machining according to expert database.
Ø Automatic positioning function:End face positioning, cylinder center positioning, corner positioning, inner hole positioning, random three points positioning, discharging position
self-decided positioning and etc.
Ø Online measuring function:Utilize automatic positioning function to do online measuring and amending to machined workpiece.
Ø Automatic arcing removing circuit:Real-time monitoring on the discharging status, if any tiny short circuit or arcing happens, system would remove arcing and give alarm
Ø Safety control function:Overload protection, code grammar detecting, oil level control, oil temperature control, automatic fire extinguisher
Ø Power-off recovery function:System can remember present position of coordinate, when suddenly power-off happens, present position can be kept.

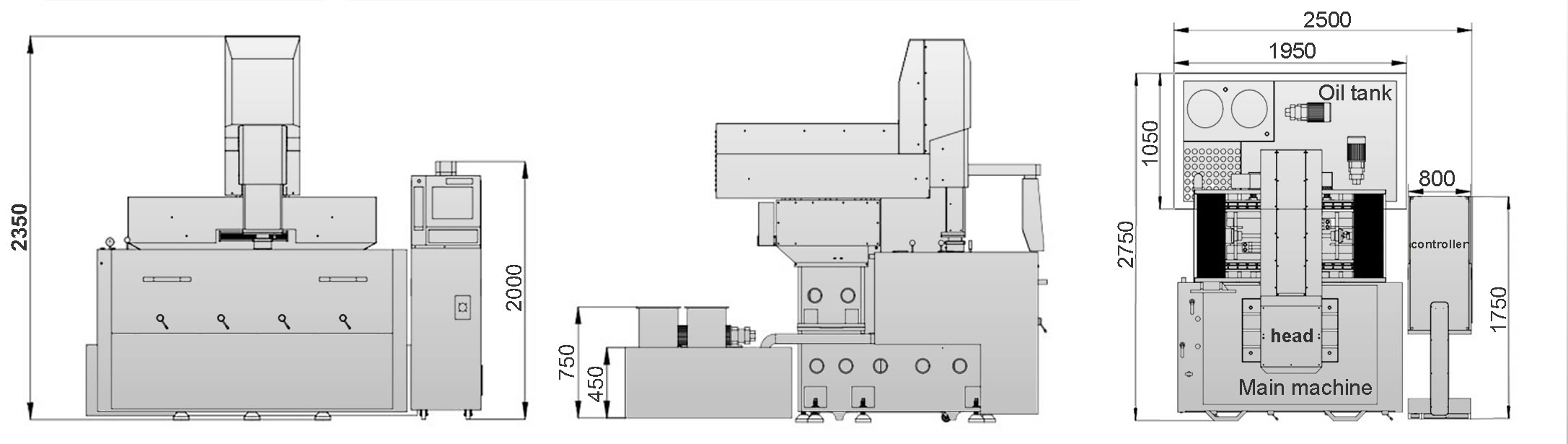

Overall dimensions
